TRIDENT CNC Router

Ready for Any Job

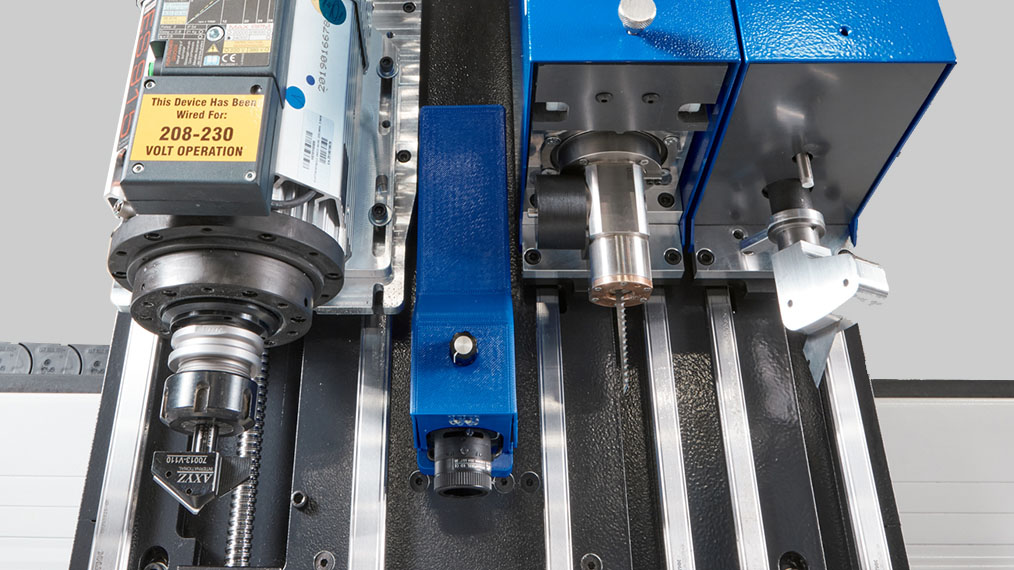

TRIDENT comes in a standard 3 device configuration, consisting of a spindle, tangential knife and oscillating knife, providing you with the right cutting tools to process virtually all materials used in the industry.

Robust Construction

Though a highly versatile machine, TRIDENT does not sacrifice performance and reliability for its capabilities. Built on a robust all-welded steel frame, a heavy-duty gantry system and powerful direct-drive servos, the machine is prepared to tackle the toughest materials.

Optimized Workflow

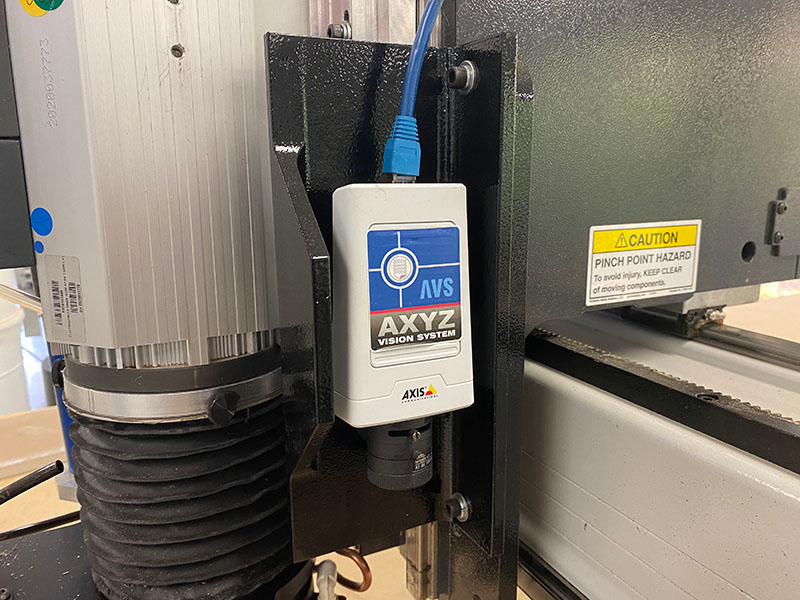

The AXYZ Vision System (AVS) is used to accurately line up all your printed material to ensure minimal use of bleed lines. Other devices such as the knife calibrator or the automatic tool tip sensor offer further automation to reduce manual processes.

Increase Productivity

Ranging from O flute tools to cut nonferrous metals, to flat point, single edge blades to cut foam board, TRIDENT’s unique configuration allows you to maximize the productivity of a single machine.

Standard cutting devices optimized to process both rigid and flexible material

Automatic tool changing, fast knife cutting and vision system integration

Popular materials include foam board, corrugated cardboard or plastic, rubber, vinyl, plywood, ACM, acrylic and aluminum

The All New AXYZ TRIDENT: The Most Versatile CNC Router & Knife Ever Built

Trident 4000 Series

WIDTH 60 inches (1,524 mm)

LENGTH 8 feet (2,438 mm) to 24 feet (7,315 mm)

Trident 5000 Series

WIDTH 72.5 inches (1,840 mm)

LENGTH 10 feet (3,048 mm) to 24 feet (7,315 mm)

Trident 6000 Series

WIDTH 85 inches (2,159 mm)

LENGTH 10 feet (3,048 mm) to 24 feet (7,315 mm)

Features & Benefits

Rapid Speeds

For high productivity, TRIDENT can achieve X, Y axis traversing speeds of 2200 inches (55 Metres) per minute (IPM) and a respective 1,000 IPM (25 Metres/m) for all knife head Z axis travel. This is due to the premium drive system and helical rack & pinion

Designed for Reliability

TRIDENT is designed and built 100% at our Ontario, Canada facility to ensure the utmost quality. It uses high quality components to ensure it lasts decades

Built by Builders

With over 30 years of experience manufacturing machines and serving this market, all our features are tailored to process the materials most used in the industry
